Ana sayfa /Ürünler/PVC Boru Yarıklı Makinesi/PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges

1 Takım
MOQ
Negotiable (USD EUR)
fiyat
PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Başvuru: PVC borularda kesme yuvaları
Makine tipi: planya makinesi
Vida Çapı: 80/156
Bıçak bıçak: SKDII
Uygun Boru Boyutu: 3-20 inç
Slot Boyutu: Özelleştirilmiş
Kanal açma derinliği: 0-10 mm
Otomatik Sınıflandırma: Tam otomatik olarak
Vida Tasarımı: İkiz vida ve namlu
Gerilim: 220V/380V
Vurgulamak:

PVC pipe slotting machine high-speed rotary

,

PVC pipe slotter reduced rough edges

,

industrial PVC pipe slotting machine
Temel bilgiler
Menşe yeri: ZHANGJIAGANG, JIANGSU
Marka adı: LB
Sertifika: CE ISO9001
Model numarası: LB-315
Ödeme & teslimat koşulları
Ambalaj bilgileri: Normal Paket
Teslim süresi: 1 yıl
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 15 takım
Ürün Açıklaması
        PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges
Product Overview

This automatic slotting machine is specifically designed for PVC and PE pipe slotting operations, widely utilized in playgrounds, parks, and lawn drainage or sewage systems.

Key Advantages
  • Dual Configuration Options: Available in both in-line and out-of-line models to suit various production setups
  • Integrated Dust Removal: Built-in dust removal equipment maintains clean workshop environment
  • High-Speed Operation: Completes pipe grooving process in just 3-5 minutes
  • Advanced Control System: PLC-controlled for fully automatic operation and easy user interface
  • Flexible Blade Configuration: Multiple knife shaft designs (1/2/3/4 groups) accommodate different slotting requirements
Technical Specifications
Model Diameter Center Height Pipe Length Air Pressure Total Power
LB160 110-160mm 700-900mm 3-6m 0.6MPa 11KW
Main Motor Servo Motor Overall Size Blade Material
3KW 0.75KW 6000×1250×1800mm W18Cr4V
Performance Features

High-Accuracy and High-Speed Performance: Engineered for precision and efficiency, making it ideal for hotels, garment shops, and construction applications.

Customizable Configuration: Can be tailored to meet specific voltage requirements for seamless integration into existing production lines.

Product Images

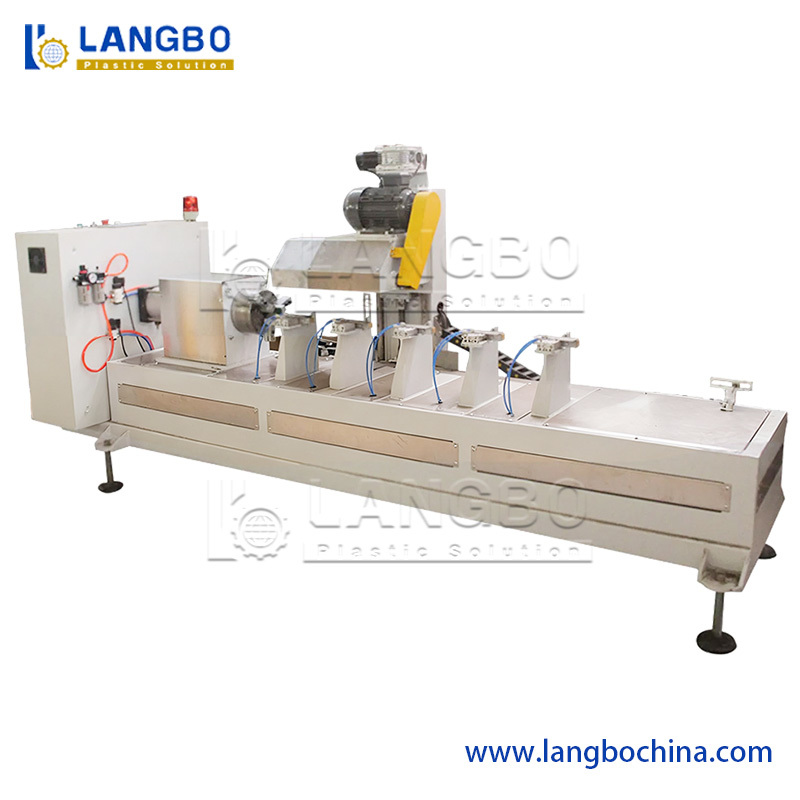

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 0

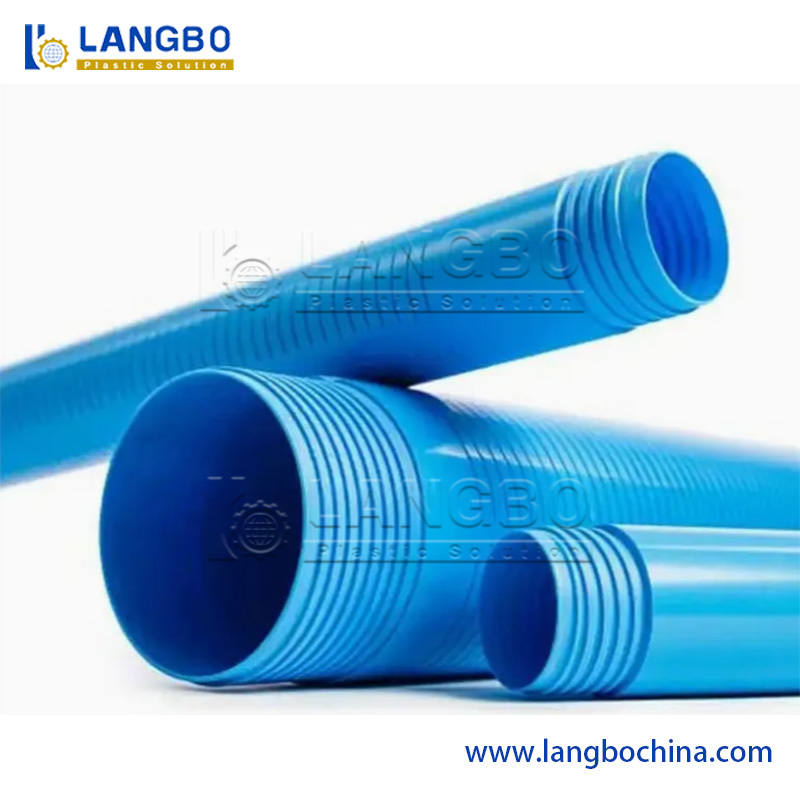

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 1

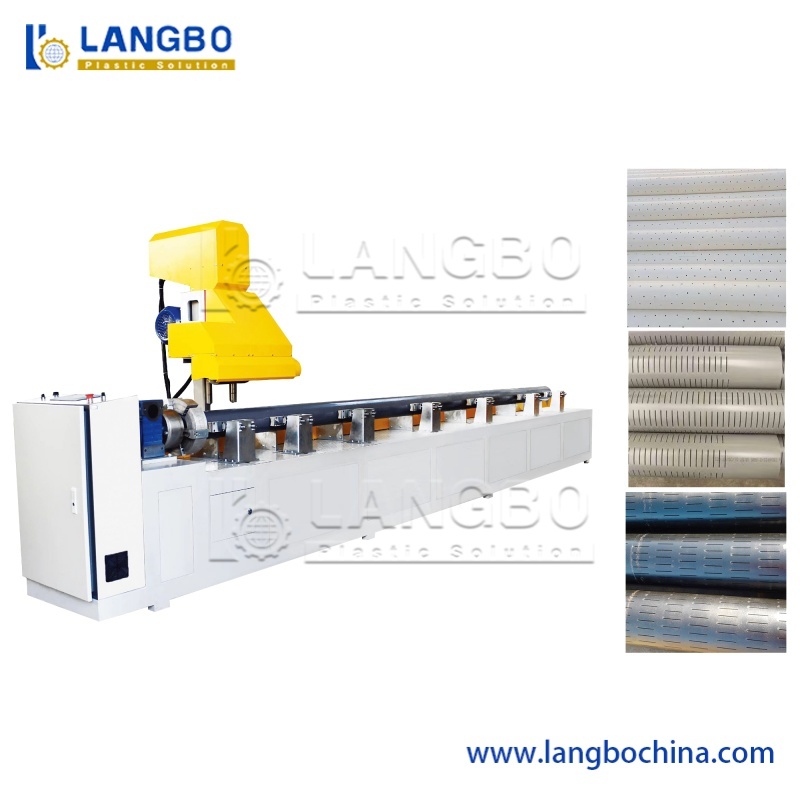

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 2

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 3

Puanlar ve İncelemeler

Genel Değerlendirme

5.0
Bu tedarikçi için 50 incelemeye göre

Derecelendirme Anlık Görüntüsü

Aşağıdaki tüm oyların dağılımıdır
5 yıldızlar
100%
4 yıldızlar
0%
3 yıldızlar
0%
2 yıldızlar
0%
1 yıldızlar
0%

Tüm İncelemeler

M
Mehmet Kaya
Turkey Nov 19.2025
Yardımsever (5)
We appreciate the high-temperature washing system and strong drying capacity. The whole line is optimized for continuous operation, and maintenance points are easy to access. Production cost is much lower compared to our previous system.
O
Olivia Grant
Canada Oct 16.2025
Yardımsever (24)
We mainly produce electrical conduit. The line performs consistently with precise diameter control. Energy consumption is lower than our previous system, and the vacuum tank is well designed for stable shaping. Highly recommended.
J
Joel Ramirez
Philippines Aug 21.2025
Yardımsever (12)
The machine runs smoothly, and the pipe quality is reliable. The cutter performs clean cuts without deformation. Ideal for pipe manufacturing.
Etiket:

PVC pipe punching machine

PVC pipe slotting machine

PVC well pipe grooving machine
