PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish

1 Takım
MOQ
Negotiable(USD,EUR)
fiyat
PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Ürün: afiş işareti tutucu ekstrüzyon makinesi
Kontrol sistemi: Dokunmatik ekran arayüzlü PLC kontrol sistemi
Kalıba dökmek: Farklı kalıp ile farklı boyut
Ana elektrikli parçalar: Uluslararası ünlü marka
Profil Boyutu: Müşterilerin çizimine göre
Genişlik: 200-600mm
Kafalı: Kişiselleştirilebilir profil kalıp kafası
Vakum tankı malzemesi: SUS304 3MM KALINLIK
Gerilim: 380V 50HZ 3Faz(Özelleştirilmiş)
Ödeme: Ekipman işleme kapasitesine göre pazarlık yapın
Vurgulamak:

PVC profile co-extrusion machine

,

PVC extrusion line with gloss finish

,

PVC profile machine rough surface
Temel bilgiler
Menşe yeri: Zhangjiagang
Marka adı: LB
Sertifika: CE,ISO9001
Model numarası: LB-51/105
Ödeme & teslimat koşulları
Ambalaj bilgileri: STANDART PAKET
Teslim süresi: 45 İŞ GÜNÜ
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 15 takım
Ürün Açıklaması
PVC Profile Making Machine With Co-extrusion Layer
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles, improving surface gloss and rough finish through co-extrusion technology.
Production Capabilities

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.

Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder
  • Specially engineered screws designed for processing dry PVC powder blends
  • Features permanent magnet synchronous motor for high energy efficiency
  • PLC control system for centralized production line management
Plate Mould System
  • Double strand mold configuration for PVC trunking production
  • Optimized channel design ensuring high flow performance
  • Precision profile manufacturing capabilities
Haul-off & Cutting Combination
  • Even force distribution across surfaces with high-quality rubber components
  • Pneumatic pressure system for easy adjustment and product protection
  • Customizable cutting options including swarfless and saw cutting methods

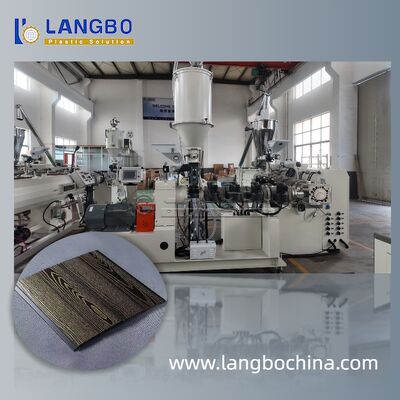

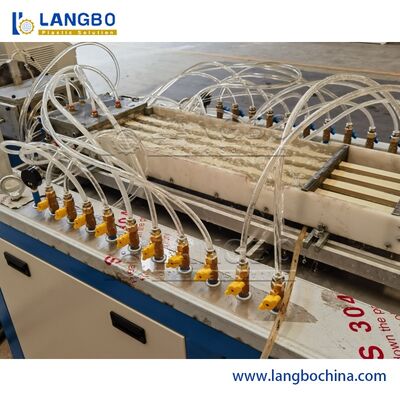

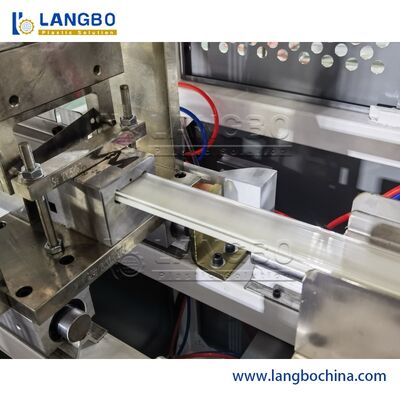

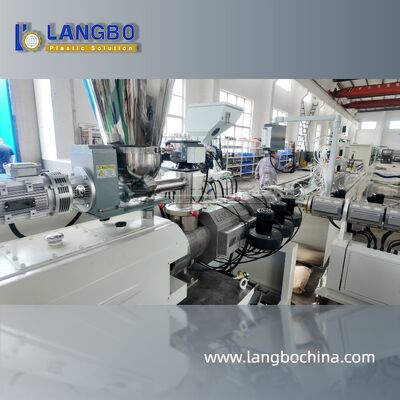

Production Line Images
PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 0 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 1 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 2 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 3 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 4
