Ana sayfa /Ürünler/WPC döşeme makinesi/WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion

1 Takım
MOQ
Negotiable（USD,EUR）
fiyat
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Garanti: 1 Yıl
Çıkış Kapasitesi: 400kg/saat
Hammadde uyumluluğu: Ağaç lifi, plastik tozu, katkı maddeleri
Vida çapı: 65mm
Kontrol sistemi: Dokunmatik Ekranlı PLC Kontrol
Makine Ağırlığı: 3500 kg
Kesici: Testere Kesici
Vida Tasarımı: Çift vidalı
hammadde: WPC & KATKI MADDELERİ
İşleme yöntemi: Kabartma
Profil Boyutu: Müşterilerin çizimine göre
Genişlik: 200,240,300,400 mm
Temel bilgiler
Menşe yeri: Zhangjiagang
Marka adı: LB
Sertifika: CE,ISO
Model numarası: LB-300
Ödeme & teslimat koşulları
Ambalaj bilgileri: STANDART PAKET
Teslim süresi: 45 İŞ GÜNÜ
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 15 takım
Ürün Açıklaması
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Conical Twin Screw Extruder

Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.

  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)

Lima Energy Saving System provides significant vacuum energy savings.

  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units

Flexible solutions with independent tracks and continuous speed adjustment.

  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter
Complete Extrusion Line Components
Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould: Ideal viscosity design with polished contact surfaces to minimize friction losses.

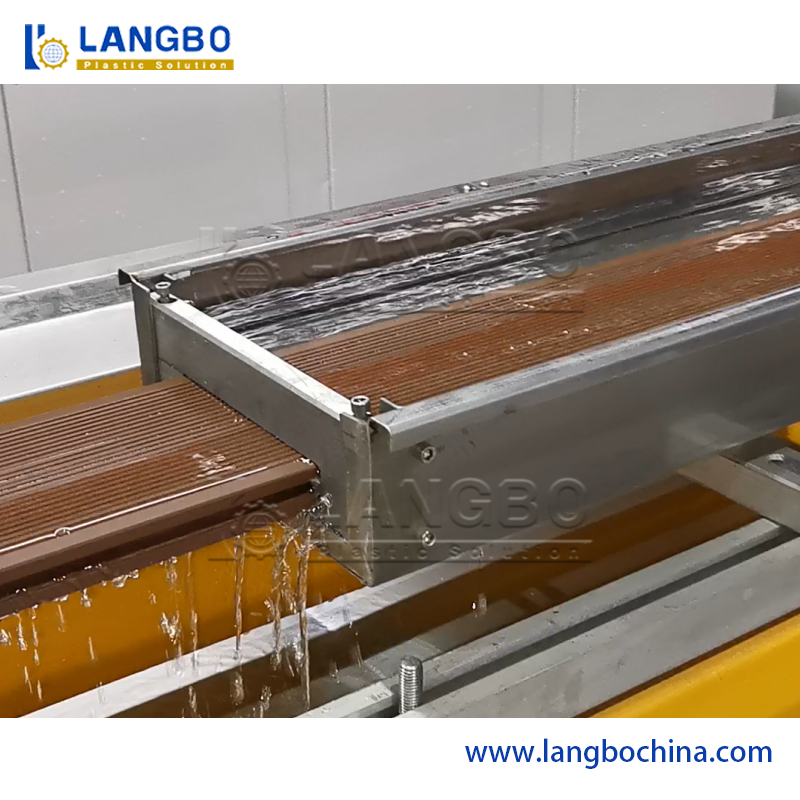

Calibration Table: Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter: High-efficiency cutting with integrated dust collection system.
Tip-off Unit: Pneumatic cylinder operation.
Production Specifications
MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER (kw)
LB-108 108 SJZ51/105 18.5 AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188 110 D

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 0

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 1

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 2

WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion 3
