PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line

1 Takım
MOQ
USD, EUR
fiyat
PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Durum: Yeni
Otomatik Sınıflandırma: Otomatik
Kapasite: 400kg/saat
Plastik işlenmiş: TPU, EVA, TPEE, PP, PE, PVC, ABS
Vida Tasarımı: Çift vidalı
Model numarası: 1 POUND = 0.45 KG
Motor: Siemens
invertör: ABB
Garanti: 2 Yıl
Elektrik Bileşenleri: Siemens veya Schnider
Paketleme yöntemi: Ahşap ve film paketleri
Teslim Zamanı: 45 gün
Vurgulamak:

PP PE recycling pelletizing machine

,

waste film crushing washing line

,

plastic granulating machine with warranty
Temel bilgiler
Menşe yeri: Zhangjiagang, Jiangsu
Marka adı: LANGBO
Sertifika: CE, ISO
Model numarası: LB-80156
Ödeme & teslimat koşulları
Ambalaj bilgileri: Standart Paket
Teslim süresi: 60 İŞ GÜNÜ
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 10 Takım
Ürün Açıklaması
This complete pellet production line efficiently processes PE, PP, and PVC materials through extrusion, strand formation, cooling, and cutting operations. The system transforms raw materials into uniform pellets for convenient storage and excellent market distribution.
Production Process Flow
Raw material + additive → Mixing → Conveying feeding → Hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Technical Specifications
Model Diameter (mm) L/D Speed (rpm) Power (kw) Output (kg/h)
LB40-B 41 24-80 ~600 30~37 100~130
LB52-B 51.4 24-80 ~600 55~75 150~250
LB65-B 62.4 24-80 ~600 90~110 300~400
LB75-B 71 24-80 ~600 132~160 400~500
LB85-B 81 24-80 ~600 220~250 700~800
LB90-B 93 24-80 ~600 280~315 900~1000
LB110-B 110 24-80 ~600 400~450
System Components

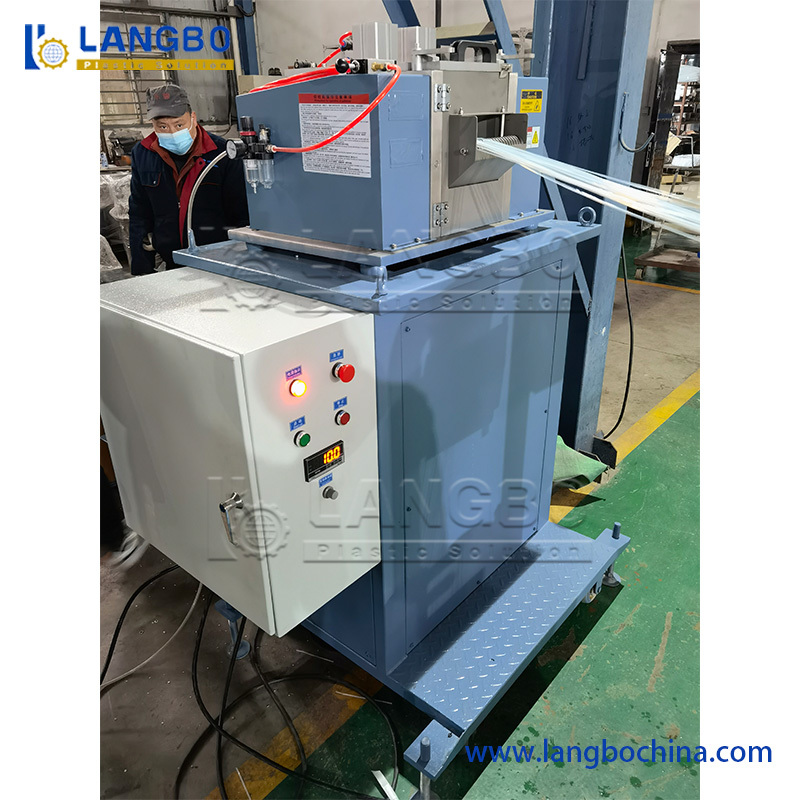

Pelletizer Unit
Constructed entirely from AISI 304 stainless steel with pelletizing blades and die made from special alloy steels and coatings tailored to plastic type. Mobile components minimize maintenance requirements, while speed control enables granule size adjustment during operation.
Vibration Sieve
Precisely controls granule size by filtering out oversized and undersized particles. Only properly sized granules proceed to storage silo via air transport system.

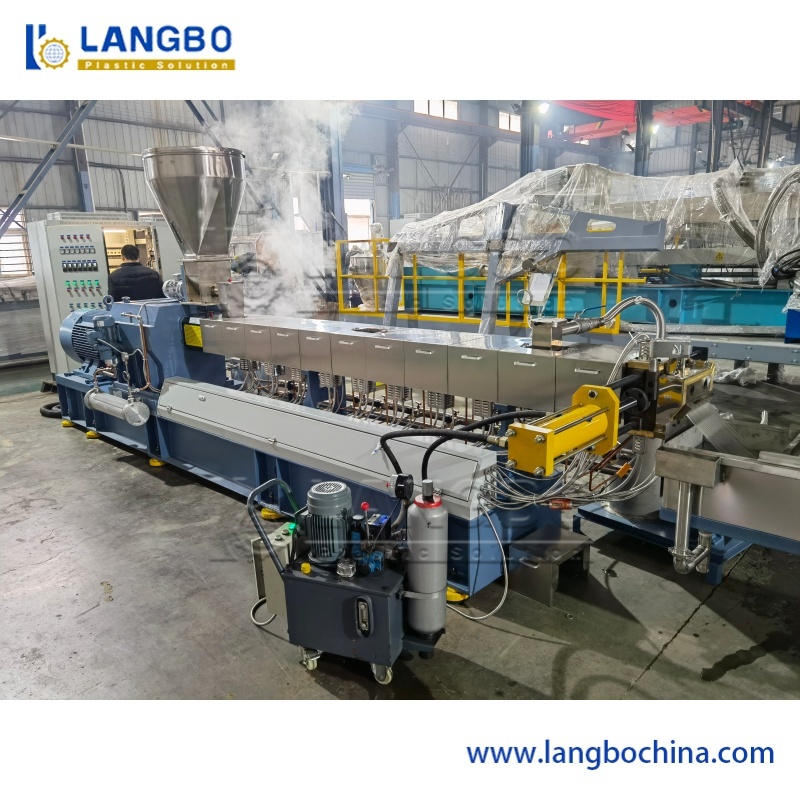

Parallel Twin Screw Extruder
  • Heavy load gearbox for reliable continuous operation
  • High precision screw components for optimal material processing
  • Premium electrical components with internationally recognized drive units
  • Simplified temperature setting and monitoring
  • Integrated degassing section for customized processing requirements

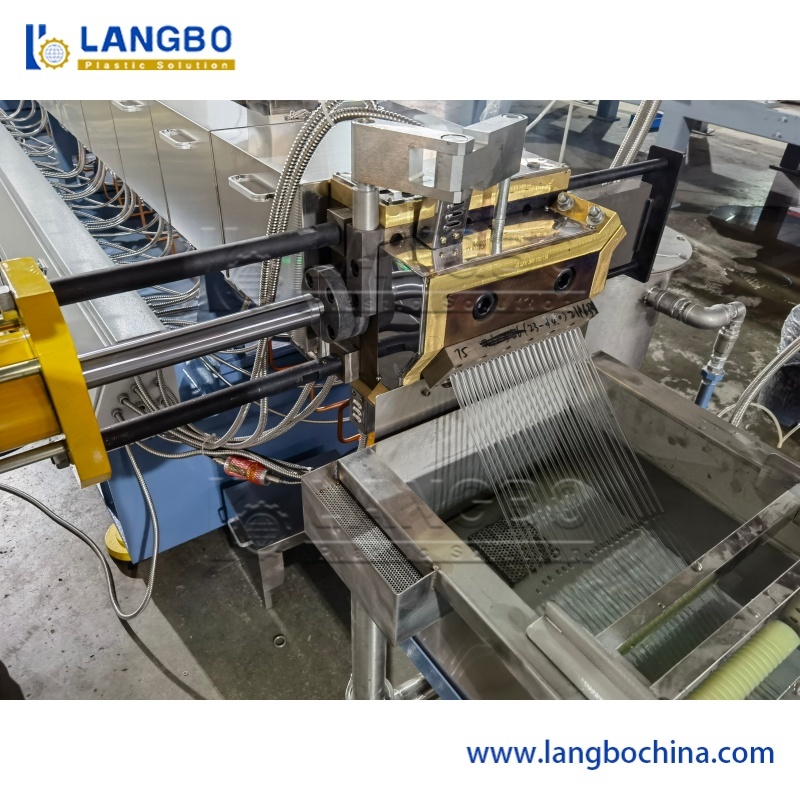

Hydraulic Melt Filter Mould
  • 304 stainless steel screens with customized mesh sizes
  • Hydraulic plate or cylinder filter body options available
  • Bronze heating elements for maximum thermal efficiency

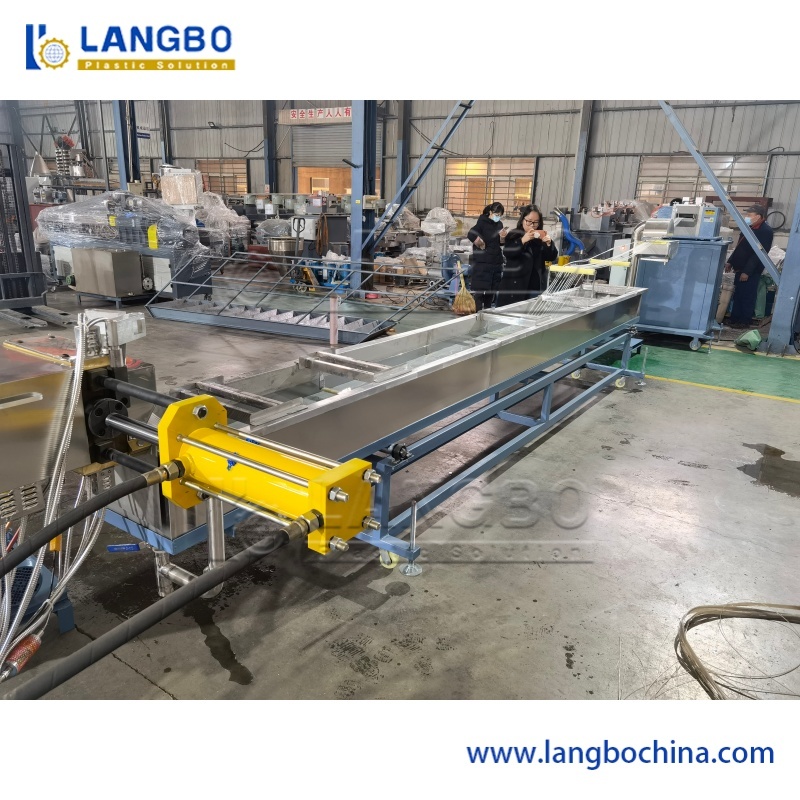

Water Tank Tempering System
  • Water circulation for uniform temperature distribution and effective cooling
  • Adjustable strand holders for precise cooling and drying control
  • Advanced manufacturing for robust construction and precise adjustment

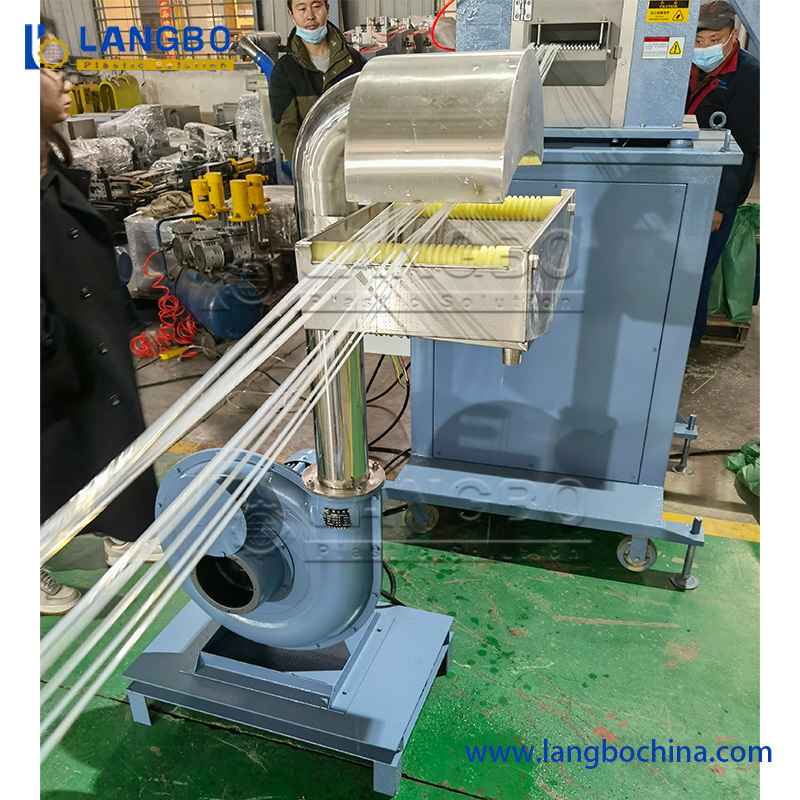

Air Knife
High-speed dewatering system for efficient strand moisture removal.
Equipment Gallery
PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line 0 PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line 1 PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line 2 PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line 3 PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line 4 PP PE Recycling Machines/ Waste Film Crushing Washing Granulating Line 5
