Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line

1
MOQ
USD
fiyat
Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Ekstrüder modeli: Tek vida ekstrüde
Profilin boyutu: Maks. 2140mm
Tek vida ekstrüder: SJ 120/35
Hammadde: PP peletleri
Kesici: TESTERE KESİCİ
Gerilim: 380V 50HZ 3Faz(Özelleştirilmiş)
invertör: ABB
Başvuru: Yapı
Garanti: Yerel yerde kurulumdan 12 ay sonra
Renk: Müşterilerin talebine bağlı
Paketleme yöntemi: Film veya ahşap kutular
Vurgulamak:

PPR plastic pipe extrusion line

,

HDPE drainage pipe production line

,

PVC profile extrusion manufacturing line
Temel bilgiler
Menşe yeri: Jiangsu Zhangjiagang
Marka adı: LB
Sertifika: CE,ISO
Model numarası: LB-95/33
Ödeme & teslimat koşulları
Ambalaj bilgileri: Film veya ahşap kutular
Teslim süresi: 45 gün
Yetenek temini: Ayda 15 takım
Ürün Açıklaması
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity
  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components

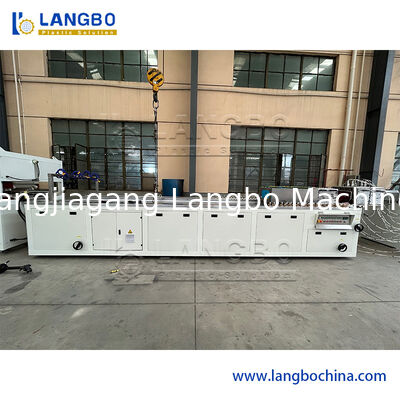

Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line 0

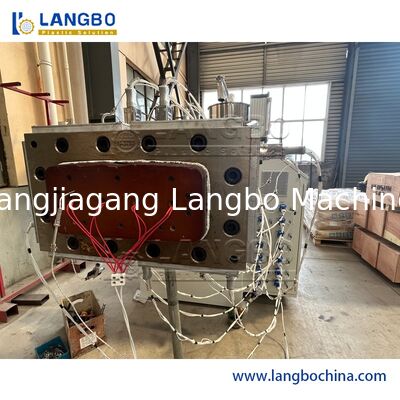

Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line 1

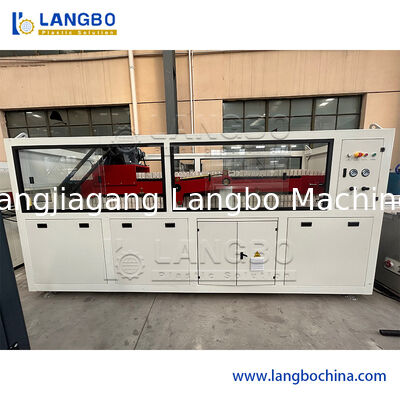

Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line 2
Haul-off System
Provides uniform force distribution across all caterpillars with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line 3
Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line 4 Plastic Single Extruder/Extrusion PPR PP HDPE Pipe/Profile Water/Gas /Drainage/Electric Conduit Supply Manufacturing Making Production Line 5
