55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunk with 22KW Motor Power

1 takım
MOQ
USD,EUR
fiyat
55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunk with 22KW Motor Power
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Ekstrüder türü: 55/110 konik ikiz vidalı ekstrüder
Profilin boyutu: 1180mm
Motor Gücü: 22kW
Hammadde: PVC Tozu ve Katkı Maddeleri
Taşıma: İki bağımsız parça
Kalibrasyon tablosu: Sekiz Mters uzunluğunda
Paketleme yöntemi: Ahşap kutu ve film paketi
Profil Boyutu: Müşterilerin çizimine göre
Teslimat süresi: 90 gün içinde
Vurgulamak:

55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line

,

1180mm Profile Size PVC Cable Trunk Making Machine

,

22KW Motor Power Conical Twin Screw Extruder
Temel bilgiler
Menşe yeri: Zhangjiagang
Marka adı: LB
Sertifika: CE,ISO9001
Model numarası: LB-1180
Ödeme & teslimat koşulları
Ambalaj bilgileri: Standart Paket
Teslim süresi: 45 iş günü
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 15 takım
Ürün Açıklaması
Conical Twin Screw Extruder PVC Cable Trunk Profile Extrusion Machine
This specialized PVC profile cable trunk production line is designed for manufacturing various PVC profiles including window and door profiles, ceiling panels, and cable trunking systems. Custom solutions and molds are developed based on specific profile drawings.
Production Process
  • PVC powder + additives → mixing
  • Material feeding → twin screw extrusion
  • Molding and calibration → vacuum forming
  • Haul-off → cutting → discharge racking
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mold technology for enhanced productivity
  • Comprehensive PLC control system for centralized operation
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Conical Twin Screw Extruder
Engineered specifically for processing dry PVC powder blends, our conical twin screw extruder ensures homogeneous mixing, superior plastification, and optimal conveying efficiency. The permanent magnet synchronous motor delivers high energy efficiency, while the integrated PLC system enables centralized control of the entire production line.
Plate Mould System
Features double-strand mold technology for PVC trunking production, significantly increasing output capacity. Advanced channel design provides exceptional flow performance, and precision manufacturing guarantees high-accuracy profile production.
Calibration Table
Constructed with a robust steel frame and SUS 304 stainless steel body, the calibration table incorporates multi-dimensional position adjustment. Strategic placement of water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles, with sufficient length for complete profile formation.
Haul-off & Cutting System
Even force distribution across caterpillar tracks delivers consistent hauling power. High-quality rubber components ensure reliable performance, while pneumatic pressure systems facilitate easy adjustment and product protection. Customizable cutting options include swarf-free and saw cutting methods.

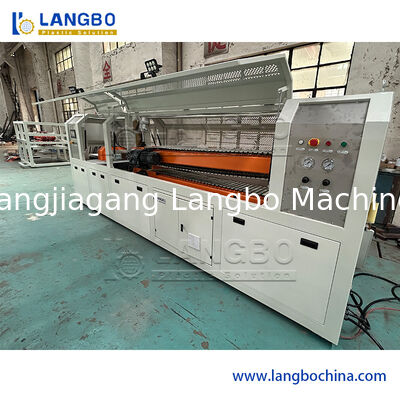

Production Line Overview
55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunk with 22KW Motor Power 0
Complete Production Line
55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunk with 22KW Motor Power 1

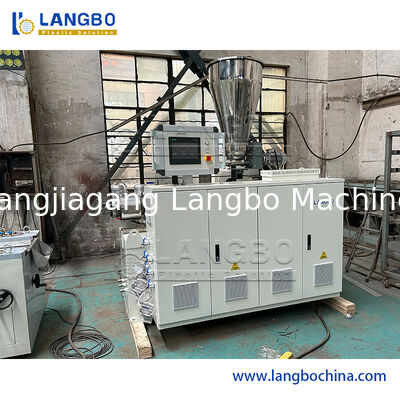

Twin Screw Extruder
55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunk with 22KW Motor Power 2
Calibration System
55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunk with 22KW Motor Power 3
Haul-off & Cutting Unit
