PVC Fiber Braided Reinforced Water Pipe Extrusion Machine

1 takım
MOQ
USD EUR
fiyat
PVC Fiber Braided Reinforced Water Pipe Extrusion Machine
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Şanzımanlar: ENTEGRE ŞANZIMAN
Motor: SIEMENS ÇİN MALI
Elektrik parçaları: Siemens veya Schnider
Çıkış: 800kg/s
Vites kutusu: Dikey Entegre
Boru Üretim Aralığı: 25-50 mm
Vurgulamak:

PVC fiber braided water pipe machine

,

reinforced PVC pipe extrusion line

,

water pipe extrusion machine with warranty
Temel bilgiler
Menşe yeri: Zhangjiagang, Jiangsu
Marka adı: LB
Sertifika: CE ISO9001
Model numarası: LB-65/28
Ödeme & teslimat koşulları
Ambalaj bilgileri: Normal Paket
Teslim süresi: 30 iş günü
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 15 Set
Ürün Açıklaması

PVC Fiber Braided Reinforced Water Pipe Extrusion Machine


Short Description

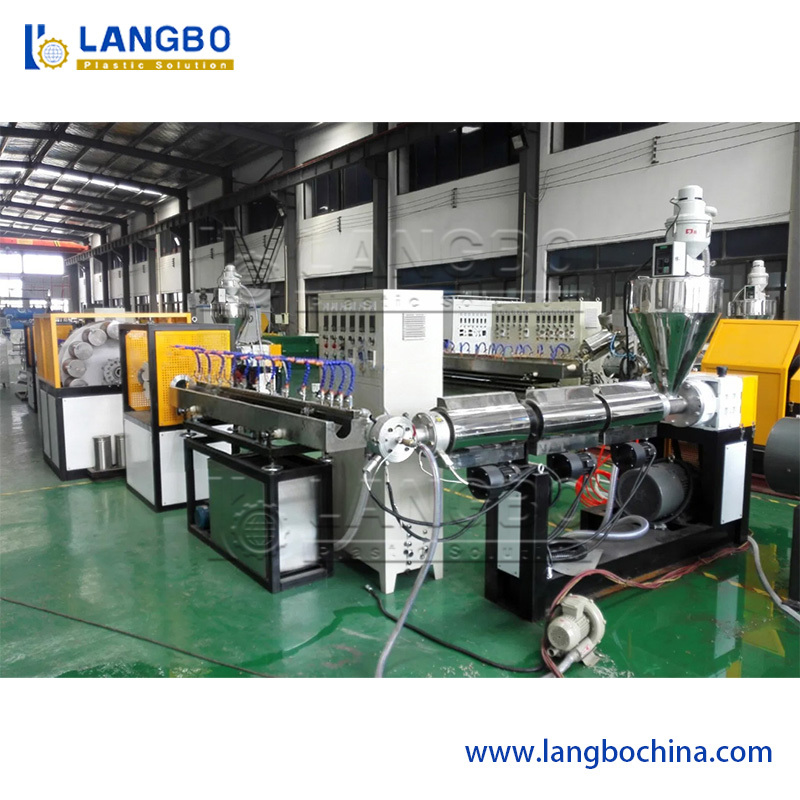

The Fiber Reinforced Pipe Extrusion Line is designed for producing multi-layer plastic composite pipes reinforced with high-strength polyester or glass fiber mesh.These pipes combine the corrosion resistance and smooth surface of plastic materials with the high mechanical strength of fiber reinforcement, making them ideal for applications in pressure water supply, irrigation, and industrial fluid transport.
The production line ensures stable extrusion, precise fiber winding, and excellent bonding between layers, resulting in pipes with high pressure resistance, low weight, and long service life.

Processing Procss
Raw Material + Additive→Mixed Granulation→Delivery → Single Screw Extruder →Extrusion Die→Spray Cooling Water Tank→Belt Haul-Off→Fiber Winding Machine→Preheat the Oven→Second Single Screw Extruder→Extrusion Die→Spray Cooling Water Tank→Belt Haul-Off→Coiler

Specification
Model 45 55 65 75
Diameter Range
 6-16mm 8-25mm 12-20mm 20-50mm
Extruder Model
SJ45/30
SJ55/30
SJ65/30
SJ75/30
Extruder Capacity
30kg/h
50kg/h
80kg/h
100kg/h
Total Power
 35kw 42kw 50kw 65kw


Product Description

PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 0PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 1

PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 2PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 3
PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 4PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 5
PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 6PVC Fiber Braided Reinforced Water Pipe Extrusion Machine 7
Product Detail
Mixing and Granulation
Raw materials such as PVC or PE resin are mixed with stabilizers and additives, then granulated to form uniform pellets. This ensures stable plasticization and consistent pipe quality during extrusion.

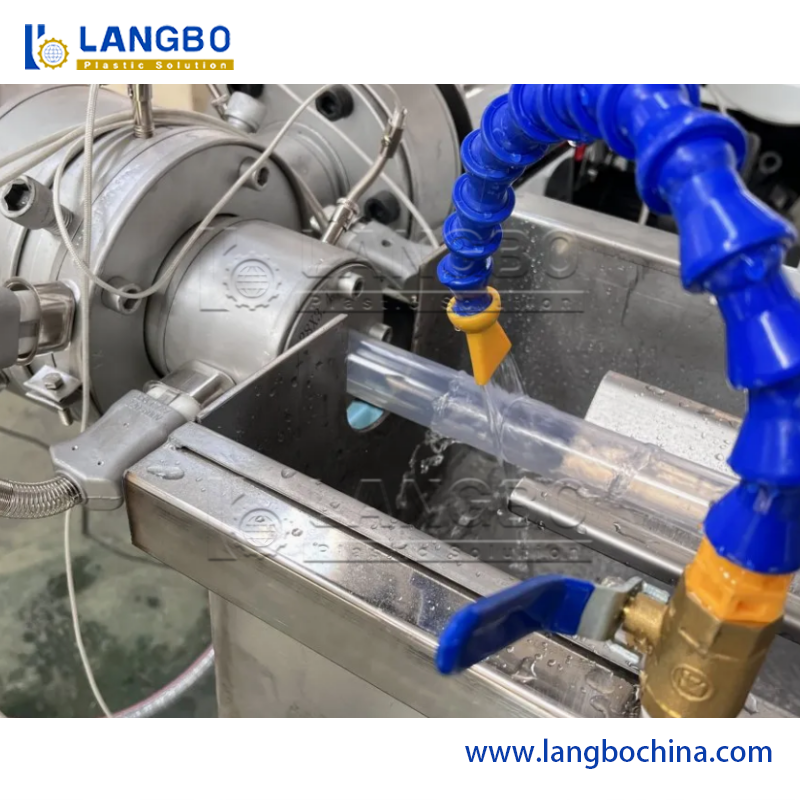

Extrusion and Inner Layer Forming
The single screw extruder melts the granules and forms the inner pipe layer through a precision extrusion die. This layer provides the base structure and smooth internal surface.

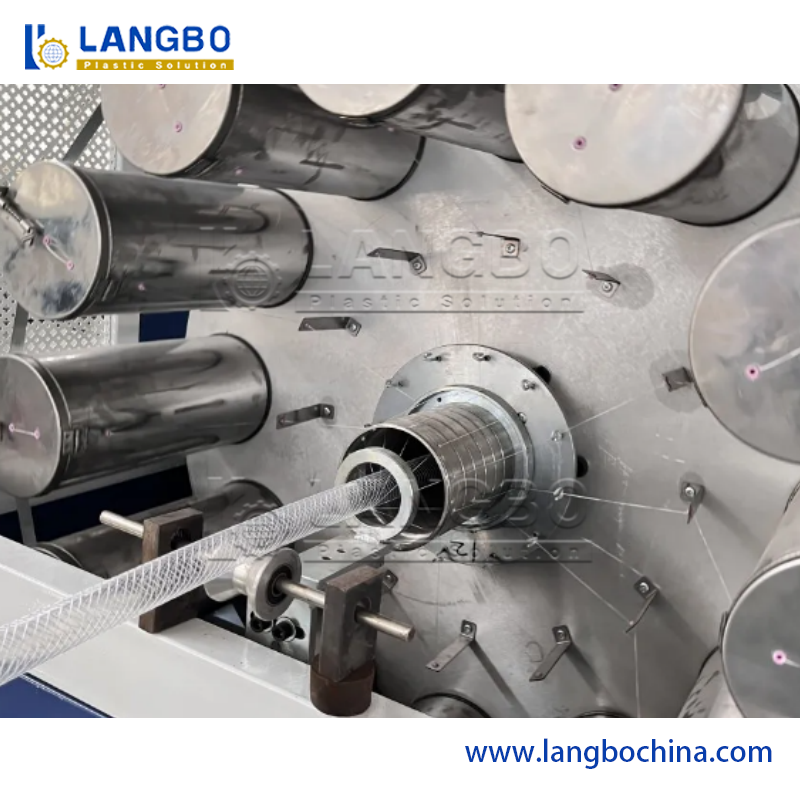

Fiber Reinforcement and Outer Layer Extrusion
A high-speed fiber winding unit wraps reinforced fiber evenly around the pipe, followed by a second extruder that coats and bonds the outer plastic layer. The result is a strong, pressure-resistant composite pipe.

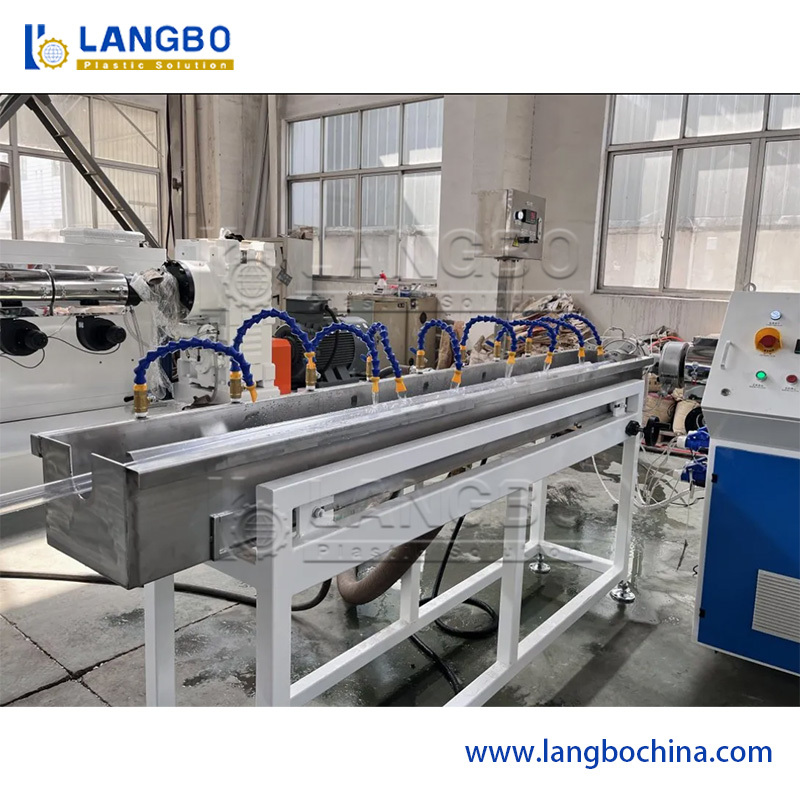

Water tank
The four meters long water tank ensures the produced pipe cooled and shaped with cold water spraying.

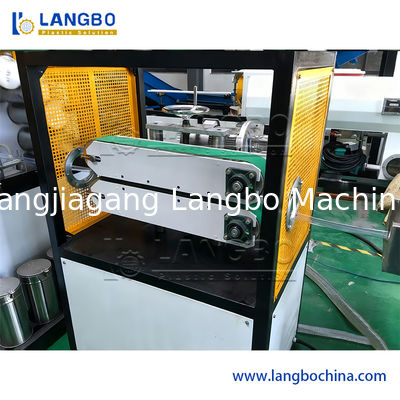

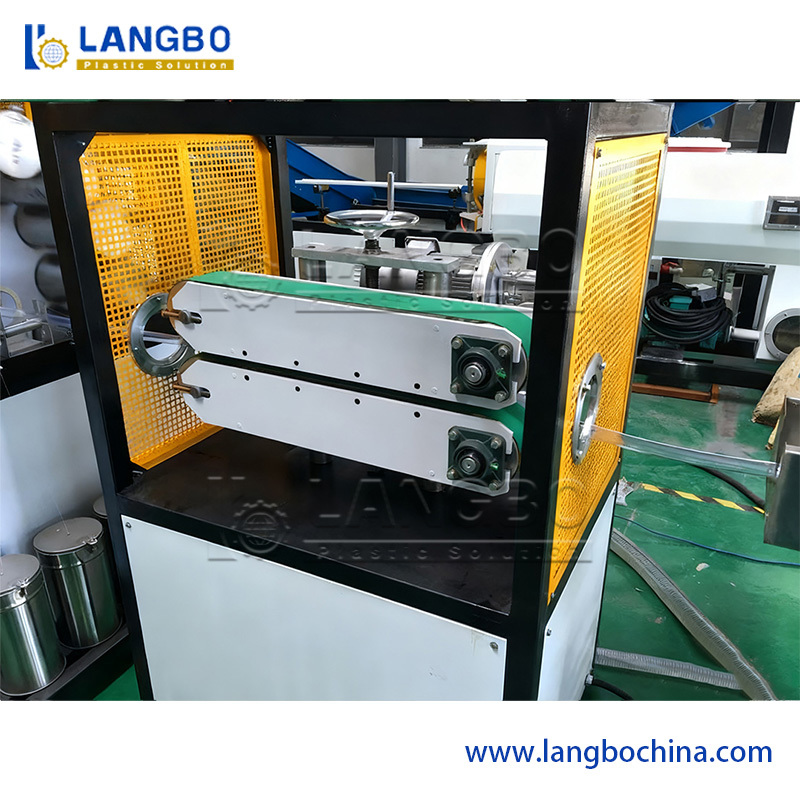

Belt haul-off
The two belt ensures the PVC braided tube moving forward stably and smoothly.

Heating oven
It will have two heating ovens for the complete extrusion line.

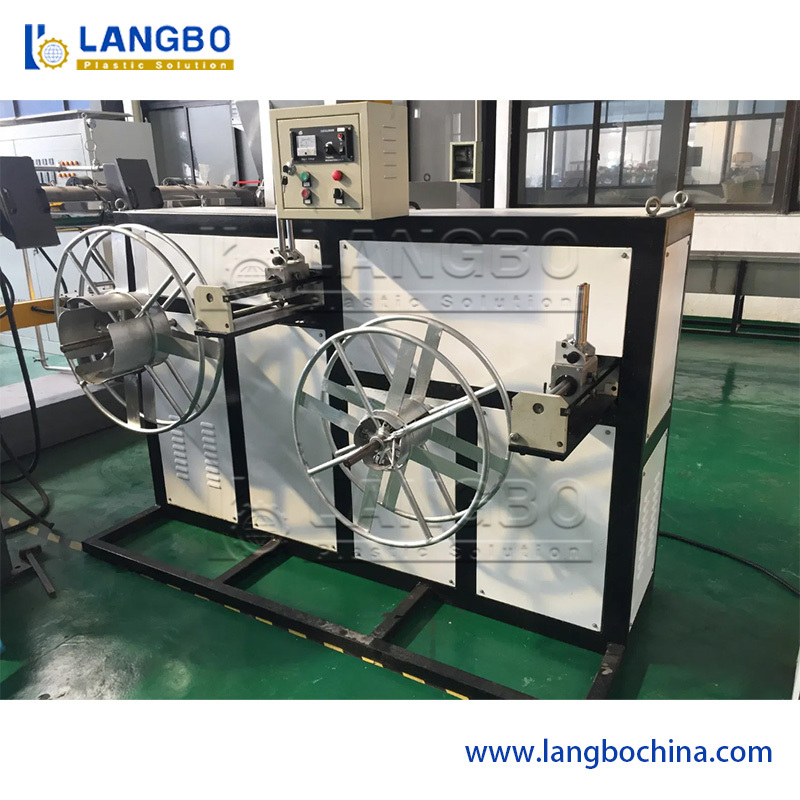

Double disk coiler
The produced PVC braided tube will be coiled by the winder machine. It will be much easy for the product transportation.

Final produced tube
It could be used as fire retardant tube.

Key Features
1.High-strength composite pipe structure with reinforced fiber mesh.
2.Excellent pressure resistance and long-term durability.
3.Stable extrusion and precise fiber winding synchronization.
4.Energy-efficient motors and temperature control system.

Delivery information
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
