630mm HDPE PE Hatay borusu borusu Tek vidalı su kaynağı ekstrüder makinesi

630mm HDPE PE Conduit Pipe Hose Single Screw Extruder Machine for Water Supply Price

Advantages:

The 355-800mm HDPE pipe is widely used in the sewage water supply field. We adopt 120/38 355kw motor for the 355-800mm pipe extrusion line which could provide high production capacity up to 1200kg/h. Our inverter frequency adopts ABB inverter. The motor is Siemens-beide(Siemens joint venture in China). All the electrical parts are Siemens or Schnider. The screw and barrel are top quality in China. The gearbox are Chines famous brand. All these excellent components ensure the quality of the complete line. For the machine, we provide installation, commisoning and training at customers' site. And we will provide life-long after-sale service.

Processing Process:

PE granules—material feeder—single screw extruder—mould and calibrator—vacuum forming machine—two-staged spraying cooling machine—haul-off machine—knife cutter—stacker.

Specifications

Product detail:

Single screw extruder machine

The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.

Mould

The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.

It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

Vacuum and cooling tank

The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.

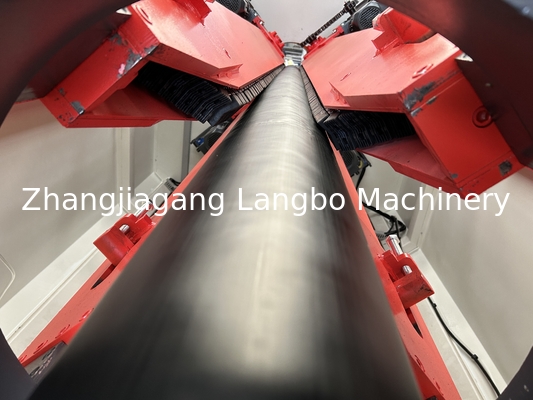

Haul-off Unit

The ten caterpillar on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.

Cutting Unit

We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the

produced pipe material, the cutting way can be switched randomly.

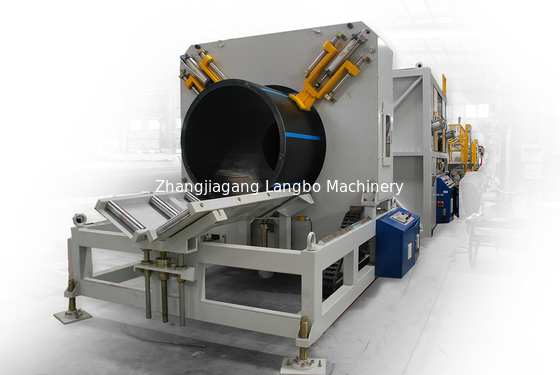

Tipping table

Our Tipping table is made by 304 quality stainless material of iron structure, sturdy structure and heavy load bearing. Our rubber wheel steady hold the pipe product without scratch risk.
