PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature

1 Takım
MOQ
Negotiable（USD, EUR）
fiyat
PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Mikser: Dikey/yatay kombinasyon
Kontrol: Otomatik
Notor gücü: 83/110/22kW
Besleme: Otomatik pnömatik
Model numarası: SRL-Z
güç(w): 18.5-75kw
NAKLİYE: Deniz yoluyla
Karıştırma malzemesi: PVC
Temel bilgiler
Menşe yeri: Zhangjiagang
Marka adı: LB
Sertifika: CE, ISO
Model numarası: LB-800/2000
Ödeme & teslimat koşulları
Ambalaj bilgileri: STANDART PAKET
Teslim süresi: 60 iş günü
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 10 takım
Ürün Açıklaması
               PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature
Product Overview
Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine designed for PVC pipe, window door profiles, ceiling panel, cable trunking, and marble sheet applications. Suitable for plastics, rubber, chemical and food industries for powder or granulate material blending, coloring and drying.
Applications
Production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process, and premix of wood-plastic composites.
Technical Specifications
  • Blade made of stainless steel with dynamic and static balance refinement
  • Double sealing cap with pneumatic start for easy operation
  • Stainless steel cylinder with 8mm wall thickness
  • Temperature auto control or time control discharge
  • ABB inverter for motor start and speed regulation
  • Direct & stable control type with analog display screen
  • Automated manufacturing procedure reduces labor intensity and production costs
Available Models
Model Total Capacity (L) Mixing Capacity (kg/h) Motor Power (kw) Paddle Speed (r/min)
SRL-Z100/200 100/200 165 14/22/7.5 650/130/180
SRL-Z200/500 200/500 325 30/42/11 475/950/130
SRL-Z300/600 300/600 500 40/50/15 475/950/130
SRL-Z500/1000 500/1000 750 47/67/15 430/860/60
SRL-Z800/1600 800/1600 1400 60/90/18.5 370/740/50
SRL-Z800/2500 800/2500 1400 80/110/30 370/740/50
SRL-Z1000/3000 1000/3000 1900 110/160/37 325/650/50
SRL-Z1300/4500 1300/4500 2500 132/200/45 250/500/50

Service & Support
  • One year guarantee for entire machine
  • 24 hours technical support
  • Overseas installation & commissioning services available
  • Maintenance guidance and spare parts provision after warranty period
  • Operator training services
Product Images

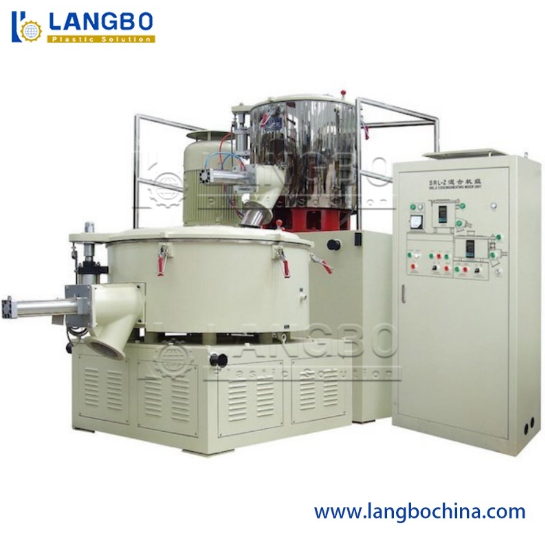

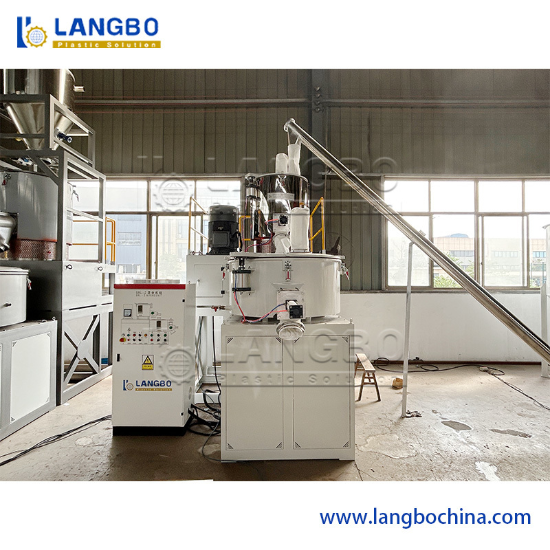

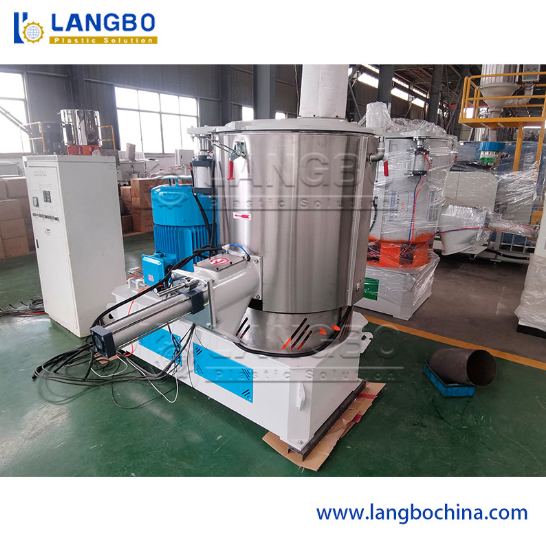

PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature 0PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature 1PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature 2
PVC Mixer Machine | High Shear Mixing Stable Batch Control Adjustable Temperature 3
